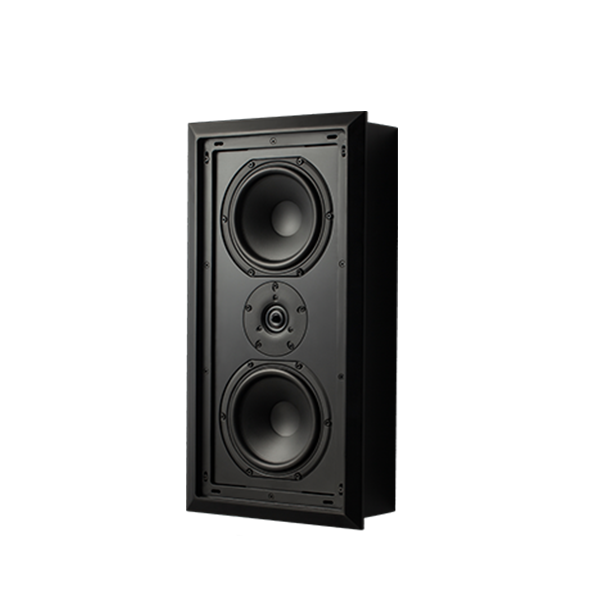

S6I

THE PINNACLE OF HIGH-PERFORMANCE AUDIO

Key to their sophisticated sound is an advanced crossover network. Each loudspeaker crossover is built with the highest-quality components. Internals including massive air-core coils, thick, high-purity copper wire, and low-distortion capacitors ensure that every nuance of the audio signal is preserved.

Designed to excel in a wide variety of sound reinforcement applications, the full range S Series are compact wall mount loudspeakers that provide inspiring acoustic performance with exceptional clarity and articulation. Manufactured to the highest standards of quality, these products are available through authorised specialty custom installation specialists and carry the full UandKSound warranty.

Critical to architectural projects is their ease of installation. The S Series continues the UandKSound tradition of innovative engineering solutions which allow custom integrators to install their products quickly and easily. Each model features a premium MDF enclosure and an extremely robust mounting-lock system that couples with the speaker’s rigid chassis when installed. S series models allow installers to complete horizontal or vertical installation.

The standard finish for this product is black matte.

Información adicional

IMPEDANCE

4 OHM

OUTPUT POWER

80W (AES), 100W (RMS), 160W (Peak)

SENSITIVITY

89dB/2.83V/1.0M

FREQ. RESPONSE

55Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

SURFACE TREATMENT

PAINT BLACK MATTE

WOOFER SIZE

6.5" x2

WOOFER RATED POWER

40W

WOOFER MAXIMUM POWER

80W

WOOFER FREQ. RESPONSE

60Hz-8Khz +/-3dB

WOOFER SENSITIVITY

87dB/2.83V/1.0M

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

IRON

MAGNET MATERIAL

FERRITE

MAGNET SIZE

90 MM

TWEETER SIZE

1" x1

TWEETER IMPEDANCE

6 OHM

TWEETER RATED POWER

20W

TWEETER MAXIMUM POWER

40W

TWEETER FREQ. RESPONSE

1KHz-22KHz +/-3dB

TWEETER SENSITIVITY

90dB/2.83V/1.0M

TREBLE PANEL

Directional polymer compressed treble

SIZE

W286 x D107 x H560 mm

WEIGHT

7.5 kg

Share this product

Información adicional

IMPEDANCE

8 OHM

OUTPUT POWER

300W (AES), 600W (RMS), 1000W (Peak)

FREQ. RESPONSE

45Hz-20KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Bass reflex

SURFACE TREATMENT

Spray black matte

WOOFER SIZE

12" x1

MAX POWER

1000W

WOOFER FREQ.

40Hz-4KHz +/-3dB

WOOFER SENSITIVITY

97dB/2.83V/1.0M

PEDESTAL MATERIAL

Aluminium

MAGNET MATERIAL

Ferrite

MAGNET SIZE

190 mm

TWEETER SIZE

1,74" x1

RATED POWER

50W

MAXIMUM POWER

80W

TWEETER FREQ.

1KHz-20KHz +/-3dB

TWEETER SENSITIVITY

106dB/2.83V/1.0M

TREBLE PANEL

Plastic resin

SIZE

W420 x D380 x H1038 mm

WEIGHT

44 kg

Información adicional

OUTPUT POWER

200W (AES), 800W (RMS), 1200W (Peak)

INPUT VOLTAGE

120/230V

SENSITIVITY

90dB/2.83V/1.0M

FREQ. RESPONSE

25Hz-300Hz +/-3dB

POWER AMPLIFIER

Class D

CABINET MATERIAL

MDF

TECHNOLOGY

Bass reflex

SURFACE TREATMENT

PAINT BLACK MATTE

WOOFER SIZE

12" x1

RATED POWER

300W

MAXIMUM POWER

1000W

WOOFER FREQ. RESPONSE

30Hz-1Khz +/-3dB

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

IRON

MAGNET MATERIAL

FERRITE

MAGNET SIZE

170 MM

SIZE

W400 x D420 x H478 mm

WEIGHT

30.3 kg

Información adicional

OUTPUT POWER

300W (AES), 800W (RMS), 1200W (Peak)

INPUT VOLTAGE

120/230V

SENSITIVITY

90dB/2.83V/1.0M

FREQ. RESPONSE

25Hz-300Hz +/-3dB

POWER AMPLIFIER

CLASS D

CABINET MATERIAL

MDF

TECHNOLOGY

Bass reflex

SURFACE TREATMENT

Paint black matte

WOOFER SIZE

15" x1

RATED POWER

500W

MAXIMUM POWER

1000W

WOOFER FREQ. RESPONSE

30Hz-1Khz +/-3dB

WOOFER SENSITIVITY

90dB/2.83V/1.0M

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

IRON

MAGNET MATERIAL

FERRITE

MAGNET SIZE

200 MM

SIZE

W482 x D480 x H557 mm

WEIGHT

44.5 kg

Información adicional

IMPEDANCE

8 OHM

OUTPUT POWER

500W (AES), 800W (RMS), 1600W (Peak)

SENSITIVITY

96dB/2.83V/1.0M

FREQ. RESPONSE

25Hz-500Hz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Bass reflex

SURFACE TREATMENT

Spray black matte

WOOFER SIZE

18" x1

RATED POWER

800W

MAXIMUM POWER

1600W

WOOFER FREQ. RESPONSE

30Hz-1KHz +/-3dB

WOOFER SENSITIVITY

96dB/2.83V/1.0M

WOOFER MATERIAL

Composite pulp

PEDESTAL MATERIAL

ALUMINIUM

MAGNET MATERIAL

FERRITE

MAGNET SIZE

220 MM

SIZE

W545 x D380 x H1038 mm

WEIGHT

51.3 kg

Información adicional

IMPEDANCE

4 OHM

OUTPUT POWER

80W (AES), 100W (RMS), 160W (Peak)

SENSITIVITY

89dB/2.83V/1.0M

FREQ. RESPONSE

70Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

SURFACE TREATMENT

Paint black matte

FRAME MATERIAL

MDF

WOOFER SIZE

6.5" x1

RATED POWER

40W

WOOFER FREQ. RESPONSE

60Hz-7Khz +/-3dB

WOOFER SENSITIVITY

87dB/2.83V/1.0M

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

IRON

MAGNET MATERIAL

FERRITE

MAGNET SIZE

90 mm

TWEETER SIZE

1" x1

TWEETER IMPEDANCE

4 OHM

TWEETER RATED POWER

20W

TWEETER MAXIMUM POWER

40W

TWEETER FREQ. RESPONSE

1KHz-22KHz +/-3dB

TWEETER SENSITIVITY

91dB/2.83V/1.0M

TREBLE PANEL

Brushed aluminium oxide

SIZE

W260 x D90 x H311 mm

WEIGHT

5.6 kg

Información adicional

IMPEDANCE

4 OHM

OUTPUT POWER

80W (AES), 100W (RMS), 160W (Peak)

SENSITIVITY

89dB/2.83V/1.0M

FREQ. RESPONSE

55Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

SURFACE TREATMENT

Paint black matte

FRAME MATERIAL

MDF

WOOFER SIZE

6.5" x1

WOOFER RATED POWER

40W

WOOFER MAXIMUM POWER

80W

WOOFER FREQ. RESPONSE

60Hz-7Khz +/-3dB

WOOFER SENSITIVITY

87dB/2.83V/1.0M

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

Iron

MAGNET MATERIAL

FERRITE

MAGNET SIZE

90 MM

MID WOOFER SIZE

4" x1

MID WOOFER RATED POWER

25W

MID WOOFER MAXIMUM POWER

60W

MID WOOFER FREQ. RESPONSE

80Hz-8KHz +/-3dB

MID WOOFER SENSITIVITY

87dB/2.83V/1.0M

TWEETER SIZE

1" x1

TWEETER RATED POWER

20W

TWEETER MAXIMUM POWER

40W

TWEETER FREQ. RESPONSE

1KHz-22KHz +/-3dB

TWEETER SENSITIVITY

91dB/2.83V/1.0M

TREBLE PANEL

Brushed aluminium oxide

SIZE

W260 x D105 x H427 mm

WEIGHT

7.6 kg

Información adicional

IMPEDANCE

4 OHM

OUTPUT POWER

80W (AES), 100W (RMS), 160W (Peak)

SENSITIVITY

89dB/2.83V/1.0M

FREQ. RESPONSE

55Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

SURFACE TREATMENT

Paint black matte

WOOFER SIZE

6.5" x1

WOOFER RATED POWER

40W

WOOFER MAXIMUM POWER

80W

WOOFER FREQ. RESPONSE

60Hz-7Khz +/-3dB

WOOFER SENSITIVITY

87dB/2.83V/1.0M

WOOFER MATERIAL

Composite pulp

PEDESTAL MATERIAL

Iron

MAGNET MATERIAL

Ferrite

MAGNET SIZE

90 mm

MID WOOFER SIZE

4" x1

MID WOOFER IMPEDANCE

4 OHM

MID WOOFER RATED POWER

25W

MID WOOFER FREQ. RESPONSE

80Hz-8KHz +/-3dB

MID WOOFER SENSITIVITY

87dB/2.83V/1.0M

TWEETER SIZE

1" x1

TWEETER IMPEDANCE

4 OHM

TWEETER RATED POWER

20W

TWEETER MAXIMUM POWER

40W

TWEETER FREQ. RESPONSE

1KHz-22KHz +/-3dB

TWEETER SENSITIVITY

91dB/2.83V/1.0M

TREBLE PANEL

Brushed aluminium oxide

SIZE

W260 x D132 x H411.5 mm

WEIGHT

8.2 kg

Información adicional

IMPEDANCE

8 OHM

OUTPUT POWER

150W (AES), 260W (RMS), 700W (Peak)

SENSITIVITY

95dB/2.83V/1.0M

FREQ. RESPONSE

60Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

TWEETER FREQ. RESPONSE

1KHz-20KHz +/-3dB

SURFACE TREATMENT

Spray black matte

WOOFER SIZE

8" x2

RATED POWER

150W

MAXIMUM POWER

400W

WOOFER FREQ. RESPONSE

60Hz-3KHz +/-3dB

WOOFER SENSITIVITY

94dB/2.83V/1.0M

WOOFER MATERIAL

Composite pulp

PEDESTAL MATERIAL

ALUMINIUM

MAGNET MATERIAL

FERRITE

MAGNET SIZE

135 MM

TWEETER SIZE

1,74" x1

TWEETER IMPEDANCE

8 OHM

TWEETER RATED POWER

50W

TWEETER MAXIMUM POWER

80W

TWEETER SENSITIVITY

106dB/2.83V/1.0M

TREBLE PANEL

PLASTIC RESIN

SIZE

W490 x D212 x H508 mm

WEIGHT

24.6 kg

Información adicional

IMPEDANCE

4 OHM

OUTPUT POWER

100W (AES), 200W (RMS), 400W (Peak)

SENSITIVITY

90dB/2.83V/1.0M

FREQ. RESPONSE

45Hz-22KHz +/-3dB

CABINET MATERIAL

MDF

TECHNOLOGY

Sealed box

SURFACE TREATMENT

Paint black matte

WOOFER SIZE

8" x2

WOOFER RATED POWER

80W

WOOFER MAXIMUM POWER

200W

WOOFER FREQ. RESPONSE

40Hz-2KHz +/-3dB

WOOFER SENSITIVITY

89dB/2.83V/1.0M

WOOFER MATERIAL

Composite pulp

PEDESTAL MATERIAL

Iron

MAGNET MATERIAL

Ferrite

WOOFER MAGNET SIZE

140 mm

MID WOOFER SIZE

4" x2

MID WOOFER IMPEDANCE

8 OHM

MID WOOFER RATED POWER

25W

MID WOOFER MAXIMUM POWER

60W

MID WOOFER FREQ. RESPONSE

80Hz-8KHz +/-3dB

MID WOOFER SENSITIVITY

87dB/2.83V/1.0M

MID WOOFER MATERIAL

COMPOSITE PULP

MID WOOFER MAGNET SIZE

90 MM

TWEETER SIZE

1" x1

TWEETER IMPEDANCE

4 OHM

TWEETER RATED POWER

20W

TWEETER MAXIMUM POWER

40W

TWEETER FREQ. RESPONSE

1KHz-22KHz +/-3dB

TWEETER SENSITIVITY

91dB/2.83V/1.0M

TREBLE PANEL

Brushed aluminium oxide

SIZE

W273 x D150 x H807 mm

WEIGHT

19.4 kg

Información adicional

OUTPUT POWER

200W (AES), 800W (RMS), 1200W (Peak)

INPUT VOLTAGE

120/230V

SENSITIVITY

90dB/2.83V/1.0M

FREQ. RESPONSE

25Hz-300Hz +/-3dB

POWER AMPLIFIER

Class AB

CABINET MATERIAL

MDF

TECHNOLOGY

Bass reflex

SURFACE TREATMENT

PAINT BLACK MATTE

WOOFER SIZE

12" x1

WOOFER RATED POWER

300W

WOOFER MAXIMUM POWER

800W

WOOFER FREQ. RESPONSE

30Hz-1Khz +/-3dB

WOOFER SENSITIVITY

91dB/2.83V/1.0M

WOOFER MATERIAL

COMPOSITE PULP

PEDESTAL MATERIAL

ALUMINIUM

MAGNET MATERIAL

FERRITE

MAGNET SIZE

180 MM

SIZE

W1010 x D250 x H480 mm

WEIGHT

46.5 kg
