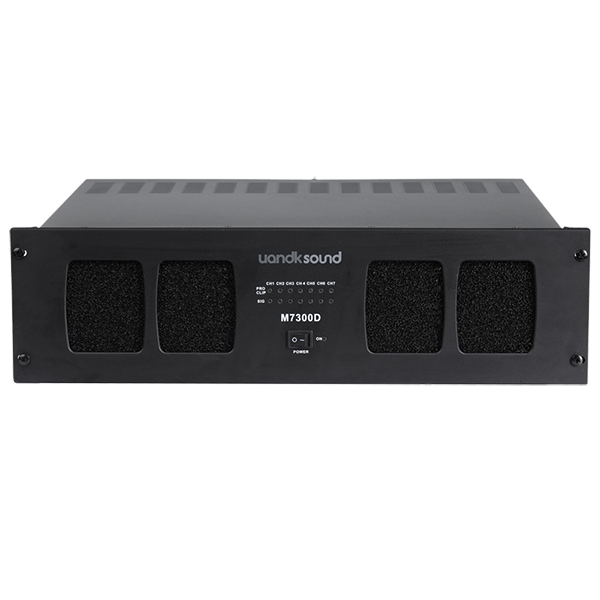

M7300D

Effortlessly controls any loudspeaker

Our new class D power amplifiers represent the best in engineering ingenuity and available electronic components. With an extremely high damping factor and the ability to deliver huge currents the class D technology effortlessly controls any loudspeaker, being the best partner for our flagship Reference Series. 750 watts per channel for M4500D and 300 watts for M7300D, with bridgeable option just for M4500D, guarantees the best sound performance on the market. Even loudspeakers with very low impedance are no match for the superior power supplies within our power amplifiers.

Perfect for any setup

The M4500D power amplifier can function in a traditional stereo or multichannel setup because of the bridgeable option. If your connected device has a 12V trigger output, this can control the power state of the M4500D and M7300D, and even daisy-chain several M4500D or M7300D power amplifiers for complex installations.

Benefits of true digital amplification

M4500D and M7300D are not a typical Class D power amplifier. Our technology utilises a combination of high current output MOSFET’s with Class D the efficiency. The units have very low distortion and an excellent signal to noise ratio, making them the perfect amplifier on the market.

UandKSound solution offers noiseless and clear replay at all sound levels. The digital signal drives the loudspeakers directly, with no translation and no middleman offering a digital to analogue conversion, virtually perfect for the most demanding audiophiles.

The result is a level of effortless power and advanced processing not available from any other manufacturer. You can be sure that our technology will deliver the most enjoyable and neutral sound you have ever experienced.

MODEL NOT AVAILABLE NOW

Información adicional

FREQ. RESPONSE

20Hz-20KHz +/-0.5dB

OUTPUT POWER

300W/4ohm

SNR

>110dB

TRIGGER CONNECTION

DC 12V

INPUT SENSITIVITY

0.775/1.55V

INPUT TERMINAL

7x XLR/RCA

THD

>0.001% at 20Hz-20KHz

COLOUR

Black

SIZE

W482 x H152 x D400 mm

WEIGHT

24 kg

Share this product

Información adicional

FREQ. RESPONSE

20Hz-20KHz +/-0.1dB

OUTPUT POWER

300W/4ohm

SNR

>115dB,"A" weighted

THD

>0.002% at 20Hz-20KHz

INPUT IMPEDANCE

XLR/RCA 80Kohm

OUTPUT IMPEDANCE

<0.015, 20Hz to 20KHz

SENSITIVITY

1.75V

INPUT TERMINAL

2xXLR/RCA

COLOUR

Black

SIZE

W452 x H105 x D453 mm

WEIGHT

22 kg

Información adicional

FREQ. RESPONSE

20Hz-20KHz +/-0.5dB

OUTPUT POWER

750W/4ohm

DC offset

less than 10mV

SNR

>110dB

POWER REQUIREMENT

2300W

INPUT SENSITIVITY

0.775/1.55V

INPUT TERMINAL

4x XLR

THD

>0.001% at 20Hz-20KHz

COLOUR

Black

SIZE

W482 x H108 x D400 mm

WEIGHT

11 kg

Información adicional

FREQ. RESPONSE

20Hz-20KHz +/-0.1dB

OUTPUT POWER

300W/4ohm

SNR

>115dB,"A" weighted

THD

>0.002% at 20Hz-20KHz

INPUT IMPEDANCE

XLR/RCA 80Kohm

OUTPUT IMPEDANCE

<0.015, 20Hz to 20KHz

SENSITIVITY

1.75V

INPUT TERMINAL

7xXLR/RCA

COLOUR

Black

SIZE

W452 x H321 x D453 mm

WEIGHT

57 kg
